HDPE PolyLock

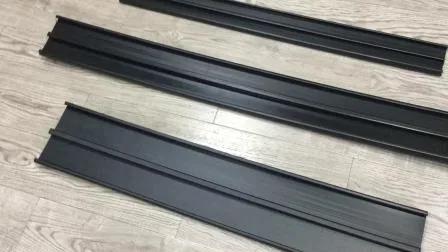

Geomembrane installation concrete polyLock is a rugged, durable HDPE profile that can be cast-in-place or inserted into wet concrete, leaving the welding surface exposed upon completion of concrete preparation. The embedment of anchor fingers provides a high-strength mechanical anchor to the concrete. When properly installed and utilized with a geomembrane, the polyLock provides an outstanding barrier to leakage. It is the most effective and economical cast-in-place mechanical anchor system for HDPE


PolyLock should be placed at least 300mm from any perpendicular surfaces to allow access for welding.

The subgrade at the edge of the concrete, should be well compacted to prevent settlement and finished flush with the top of the concrete to avoid undue stresses on the geomembrane.

Once the shape of the concrete slab and the position of the polylock have been established we cut and weld the PolyLock to form a continuous band that will be added to the concrete after pouring.

PolyLock retains its flexibility even when welded so there is little chance of damaging it even when handling a completed band.

The completed band is worked into wet concrete until it is flush with the finished surface. When the concrete is set the PolyLock is ready for welding to the HDPE liner.

Key Features of our Products:

  • Geomembrane connection lock is a flexible waterproof material, with high seepage coefficient.
  • Having good heat resistance and cold resistance, the temperature of the environment of high temperature 110 oc, low temperature -70.
  • Has good chemical stability, resistant to acid, alkali, oil, corrosion is good anti-corrosion materials.
  • Has a very high tensile strength, it has a high tensile strength to meet the high standards of project needs.
  • Has a strong weather resistance, has a strong anti-aging properties, and prolonged use can maintain the original performance.
  • Has a strong tensile strength and elongation at break, so HDPE geomembrane can be used in a variety of harsh geological and climatic conditions. Strong adaptability to adapt to uneven settlement.
  • Excellent UV stability.
  • Very Strong for Outdoor Application


The sizes of the samples are approx 1, 2 Pcs but sizes may vary slightly depending on availability.


Orders are delivered via a next day service and we aim to dispatch all orders within 48 hrs, 80% of our orders are currently being delivered within 3 working days from ordering. However during busy periods, or if the product is out of stock, we may dispatch within three to four working days from when we receive your order.

Track Order Status:

We pride ourselves on great customer service and communication – during the order process you will receive several emails to keep you up to date with the status of your order and also when it has been dispatched


All sizes of this product are dispatched with protective air bubble and Woven sacks on both side.

Dispatch information:

We have an excellent relationship with our Transporter service and all orders are meticulously packed using a variety of materials to ensure the sheets arrive in excellent condition.

Please Note:

Our current machines work to a tolerance Thickness of +/- 0.1mm. Colour of sheets may differ slightly due to variance in computer monitors.
